Cortex Onboard is a free Android and Apple iOS app that connects your phone or tablet to the WiFi of the M1.
Use the Cortex Onboard App to configure, manage and display M1 data. The Configuration Menu is used for initial configuration, AIS programming, network settings, firmware updates and input / output sensor setup.
Once the M1 is configured, the Cortex Onboard App provides access to all M1 status and smartAIS display screens in a similar layout to a Cortex handset.
Cortex Onboard App Main Menu Options
Select the Main Menu icon ()

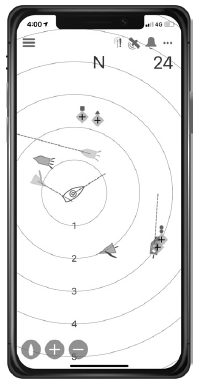

Plotter | Plotter view of AIS targets |

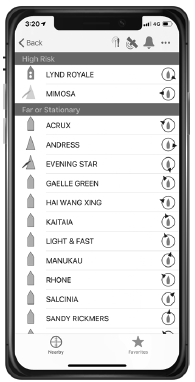

Directory | AIS targets and manual DSC contacts |

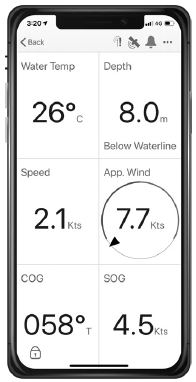

Instruments | GPS, integrated sensors and NMEA data |

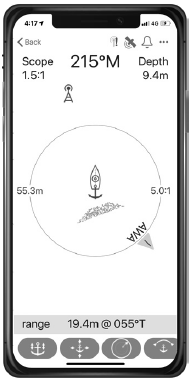

Anchor Watch | Monitor the vessel at anchor |
Collision avoidance | Manage a potential collision scenario |

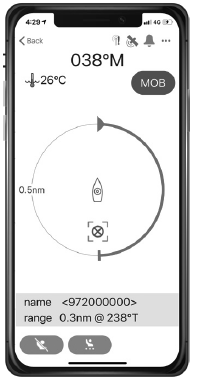

MOB | Man Overboard monitoring |
Settings | Configure and manage the M1 |
Plotter |
Directory |
Instruments |
Anchor Watch |
MOB |
